Step-up Boost DC-DC Converter 2.5-6V input 5V output 1A 92% efficiency

SKU: 81-025

160.00

LOCAL PICKUP @ OUR SHOP! Within Davao City.

P 190 FLAT-RATE DELIVERY! For orders less than 2kg, anywhere in the Philippines. For orders more than 2kg, delivery charges may vary.

Category:
  • Description
  • Reviews (0)

Description

Product Description
Press Release:
1: The new United States imported chips, definitely not homemade chips, disassemble chip.
2: The maximum output current of 3A, the long-running 2.1A, sufficient margin.
3: The new design, circuit design does not require electrolytic capacitors and tantalum capacitors (electrolytic capacitor life is short, there is a risk of explosion tantalum capacitors). Now with the use of high-end large-size solid ceramic capacitor circuit (MCC) 3
Very low ripple, 12V switch 5V 3A only about 10 mV ripple many peers have reached 500 mV or greater, the device will cause an invisible injury, severe can cause fault or damage.

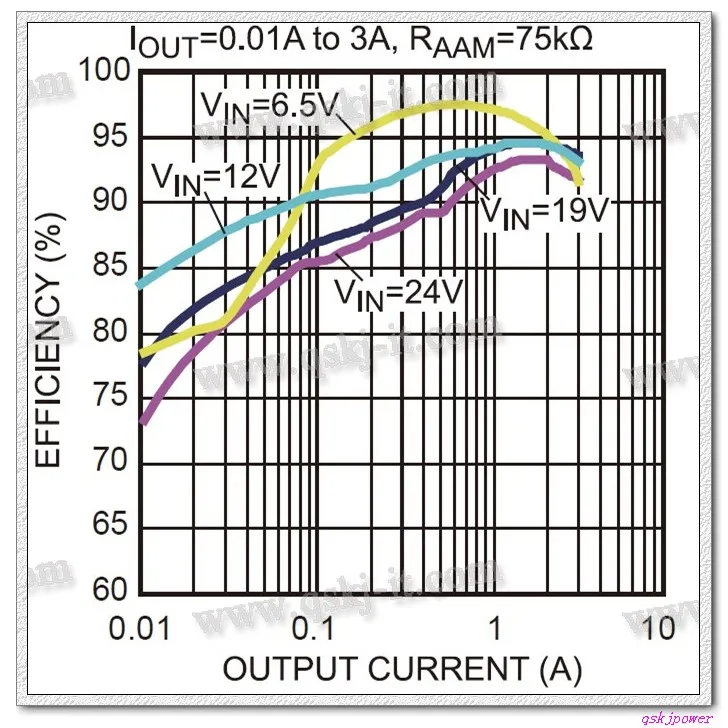

4: The new program uses synchronous rectification circuit conversion efficiency is very high, in turn 5V 0.7A 6.5V when efficiency up to 97.5%, 12V turn 5V 1A when it reached 94%, unlike some peers only 60-70% efficiency . (Efficiency test removed the input reverse polarity protection diode and fuse drop).
5: Using flat copper inductors, maximize conversion efficiency. Reduce heat.
6: The whole network first with output overvoltage protection, input fuse has 1.5A, 5V output of 300W TVS has done a pressure pipe clamp protection, protect USB devices.
7: Using the latest USB identification circuit.
8: Short head gilded boundless USB, long service life, not ordinary USB interface can be compared.
9: Output voltage indicator (red)
10: Ultra-small size, 26.4 (L) * 15 (W) * 7.4 (H) mm, the smallest of the whole network.
11: inputs with reverse polarity protection diode, the positive and negative input will not reverse damage (We tested the efficiency of ignoring the input diode and fuse drop)
12: ultra-low quiescent current, 0.85 mA quiescent current. Connected to the car battery without adding switches can be connected in a cigarette lighter line, or ACC power line cord.
Module Parameters:
  • Dimensions: 26.4 (L) * 15 (W) * 7.4 (H) mm
  • Module Properties: non-isolated  (BUCK) synchronous rectification
  • Input voltage: DC 6-24V
  • Output voltage: 5.1-5.2V (You can choose to choose between 3.3-6V, if other voltages Please let the treasurer, the default shipping is 5.1V-5.2)
  • Output current: 3A (full load cooling Note), the actual test input 12V 2A output within the heat without special treatment.
  • Conversion efficiency: up to 97.5% (6.5 turn 5V 0.7A) (short reverse test value protection and fuses)
112
  •  Switching frequency: 500KHz

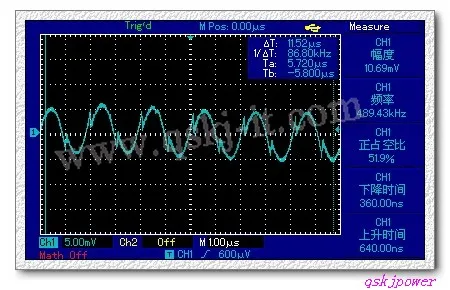

  • Output ripple: 10mV around (12V turn 5V3A) 20M bandwidth
22
  • Output indicator: Output voltage light is red
  • Operating temperature: Industrial grade (-40  to + 85 ) (ambient temperature, the higher the output power is smaller)
  • Output voltage protection: Yes, input fuse 1.5A output 5V have 300W TVS tube clamp protection.
  • Full temperature: 30
  • Quiescent Current: 0.85 mA
  • Load regulation: ± 1%
  • Voltage Regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Output short circuit protection: Do not short circuit time
  • Input reverse polarity protection: Yes, there is reverse input protection diodes
  • Connection: Welding
  • Input: Welding
  • Output: short head boundless USB
